Our solid carbide end mills for stainless steel are specially designed for machining austenitic, martensitic, and duplex stainless steels. Featuring optimized edge geometry, high core strength, and heat-resistant nano coatings, they deliver excellent surface finish, extended tool life, and stable performance in both continuous and interrupted cuts.

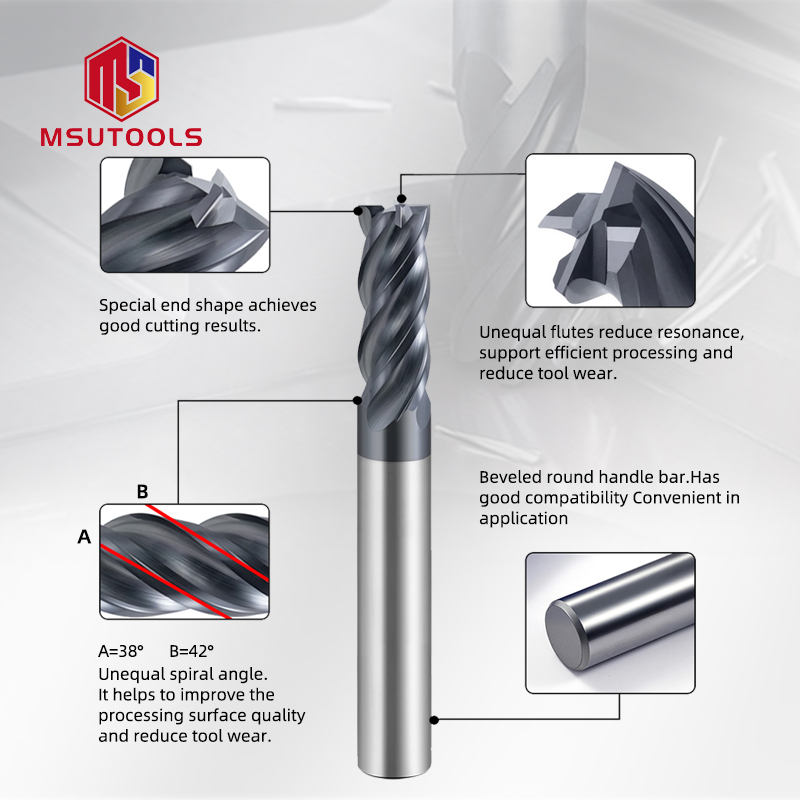

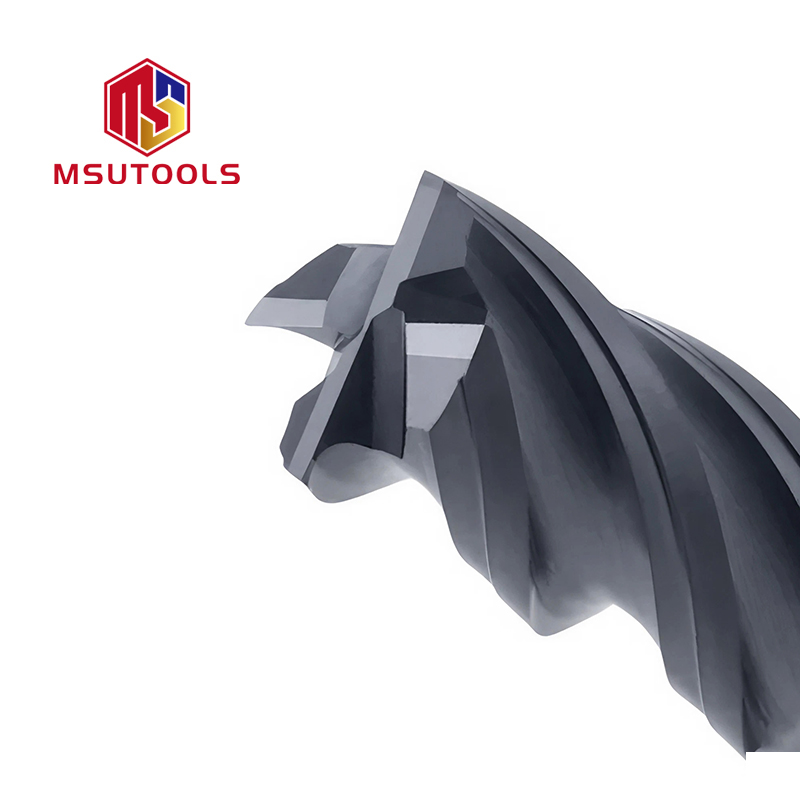

Special edge geometry to reduce built-up edge (BUE)
Tough substrate and reinforced core to prevent chipping
– Nano-coating (TiAlSiN / AlCrN) resists high heat and wear
– High helix design for better chip evacuation
– Smooth and bright surface finish on stainless steel
| Item | Description |
| Material | Ultra-fine grain carbide |
| Coating | TiAlSiN / AlCrN / Nano-coating |
| Flutes | 4 Variable Helix Anti-Vibration |
| Helix Angle | 38° / 42° / Variable |
| Type | Flat end / Ball nose / Corner radius |
| Work Material | SUS304 / SUS316 / Duplex / Martensitic SS |
| Operation | Roughing / Finishing / Slotting / Side Milling |
| Cutting Date | Vc=260-400 SFM, fz=0.003-0.006 IPT |
– Precision medical devices
– Food-grade equipment
– Stainless steel kitchenware
– Aerospace stainless parts
– Pumps & valves
OEM / ODM available for laser marking and custom packaging
Customizable flute length, diameter, helix angle, and more
Professional machining consultation for stainless steel materials
Free samples available for qualified partners
