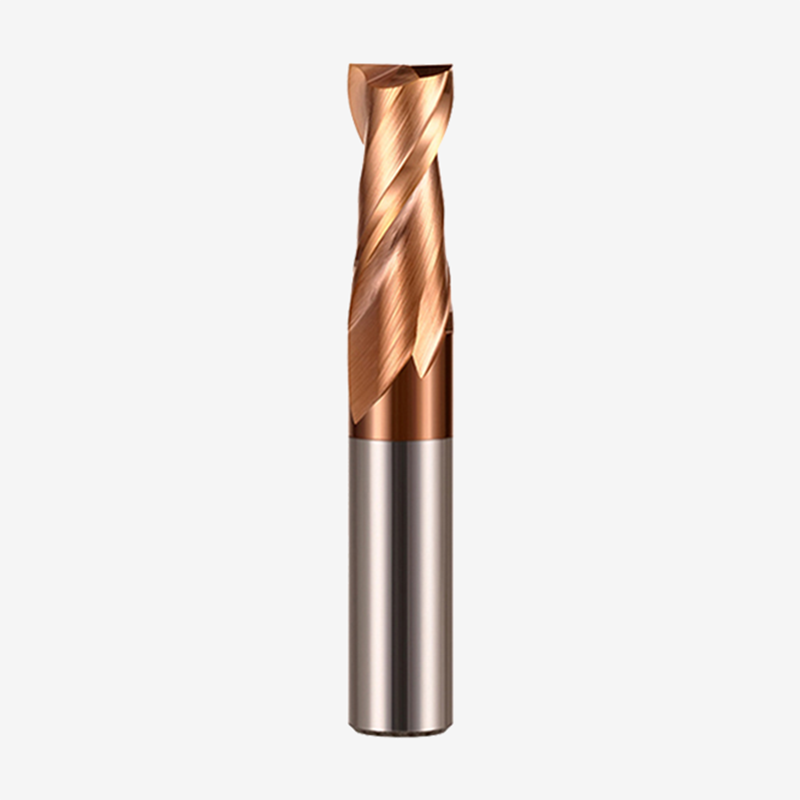

Two-flute flat carbide end mill for general-purpose milling of steel, stainless steel and cast iron.

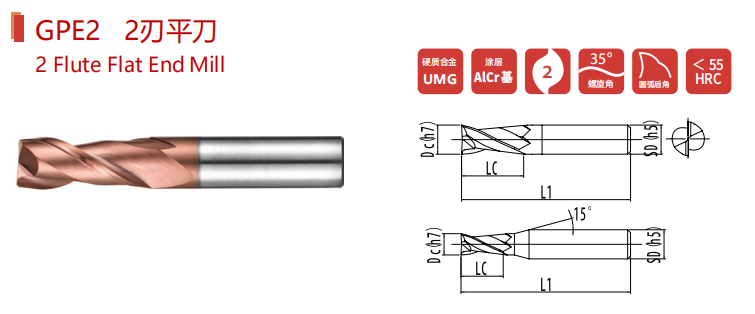

| Series | Code | Parameter | Dc(h7) | LC | L1 | SD(h5) | Teeth number |
| GP | GPE2-01 | 1*3*50*4 | 1 | 3 | 50 | 4 | 2 |
| GP | GPE2-015 | 1.5*4*50*4 | 1.5 | 4 | 50 | 4 | 2 |
| GP | GPE2-02 | 2*6*50*4 | 2 | 6 | 50 | 4 | 2 |
| GP | GPE2-025 | 2.5*8*50*4 | 2.5 | 8 | 50 | 4 | 2 |
| GP | GPE2-03 | 3*8*50*4 | 3 | 8 | 50 | 4 | 2 |
| GP | GPE2-03P | 3*8*50*6 | 3 | 8 | 50 | 6 | 2 |
| GP | GPE2-03A | 3*12*75*4 | 3 | 12 | 75 | 4 | 2 |
| GP | GPE2-035 | 3.5*11*50*4 | 3.5 | 11 | 50 | 4 | 2 |
| GP | GPE2-04 | 4*12*50*4 | 4 | 12 | 50 | 4 | 2 |
| GP | GPE2-04P | 4*12*50*6 | 4 | 12 | 50 | 6 | 2 |
| GP | GPE2-04A | 4*15*75*4 | 4 | 15 | 75 | 4 | 2 |
| GP | GPE2-04B | 4*20*100*4 | 4 | 20 | 100 | 4 | 2 |
| GP | GPE2-04PB | 4*20*100*6 | 4 | 20 | 100 | 6 | 2 |
| GP | GPE2-05 | 5*13*50*6 | 5 | 13 | 50 | 6 | 2 |
| GP | GPE2-05L | 5*15*50*6 | 5 | 15 | 50 | 6 | 2 |
| GP | GPE2-05A | 5*20*75*6 | 5 | 20 | 75 | 6 | 2 |
| GP | GPE2-05B | 5*30*100*6 | 5 | 30 | 100 | 6 | 2 |
| GP | GPE2-05C | 5*35*150*6 | 5 | 35 | 150 | 6 | 2 |
| GP | GPE2-06 | 6*16*50*6 | 6 | 16 | 50 | 6 | 2 |
| GP | GPE2-06L | 6*18*50*6 | 6 | 18 | 50 | 6 | 2 |
| GP | GPE2-06A | 6*25*75*6 | 6 | 25 | 75 | 6 | 2 |
| GP | GPE2-06B | 6*30*100*6 | 6 | 30 | 100 | 6 | 2 |
| GP | GPE2-06C | 6*35*150*6 | 6 | 35 | 150 | 6 | 2 |
| GP | GPE2-07 | 7*20*60*8 | 7 | 20 | 60 | 8 | 2 |
| GP | GPE2-08 | 8*20*60*8 | 8 | 20 | 60 | 8 | 2 |
| GP | GPE2-08L | 8*24*60*8 | 8 | 24 | 60 | 8 | 2 |
| GP | GPE2-08A | 8*30*75*8 | 8 | 25 | 75 | 8 | 2 |
| GP | GPE2-08B | 8*35*100*8 | 8 | 35 | 100 | 8 | 2 |
| GP | GPE2-08C | 8*40*150*8 | 8 | 40 | 150 | 8 | 2 |
| GP | GPE2-09 | 9*23*75*10 | 9 | 23 | 75 | 10 | 2 |
| GP | GPE2-10 | 10*25*75*10 | 10 | 25 | 75 | 10 | 2 |
| GP | GPE2-10L | 10*30*75*10 | 10 | 30 | 75 | 10 | 2 |
| GP | GPE2-10B | 10*40*100*10 | 10 | 40 | 100 | 10 | 2 |
| GP | GPE2-10C | 10*55*150*10 | 10 | 55 | 150 | 10 | 2 |
| GP | GPE2-11 | 11*28*75*12 | 11 | 28 | 75 | 12 | 2 |
| GP | GPE2-12 | 12*30*75*12 | 12 | 30 | 75 | 12 | 2 |
| GP | GPE2-12L | 12*36*75*12 | 12 | 36 | 75 | 12 | 2 |
| GP | GPE2-12B | 12*45*100*12 | 12 | 45 | 100 | 12 | 2 |
| GP | GPE2-12C | 12*60*150*12 | 12 | 60 | 150 | 12 | 2 |
| GP | GPE2-14 | 14*45*100*14 | 14 | 45 | 100 | 14 | 2 |
| GP | GPE2-14C | 14*60*150*14 | 14 | 60 | 150 | 14 | 2 |
| GP | GPE2-16 | 16*45*100*16 | 16 | 45 | 100 | 16 | 2 |
| GP | GPE2-16C | 16*70*150*16 | 16 | 70 | 150 | 16 | 2 |
| GP | GPE2-18 | 18*45*100*18 | 18 | 45 | 100 | 18 | 2 |
| GP | GPE2-18C | 18*70*150*18 | 18 | 70 | 150 | 18 | 2 |
| GP | GPE2-20 | 20*45*100*20 | 20 | 45 | 100 | 20 | 2 |
| GP | GPE2-20C | 20*70*150*20 | 20 | 70 | 150 | 20 | 2 |
Applications: General-purpose milling of steel, stainless steel and cast iron for molds, automotive and precision parts. Suitable for slotting, side milling and surface finishing.

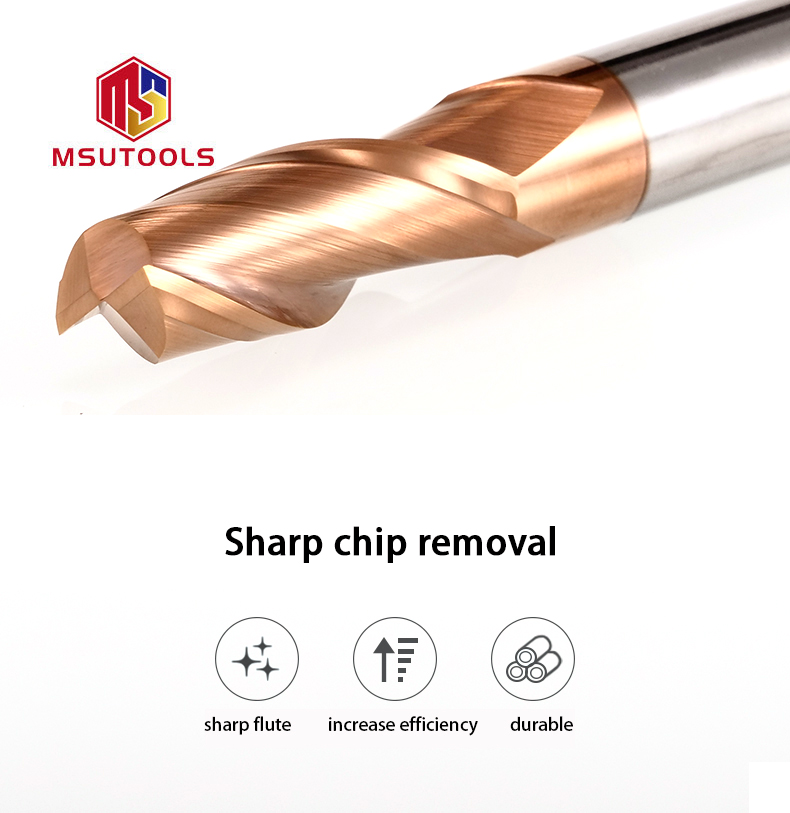

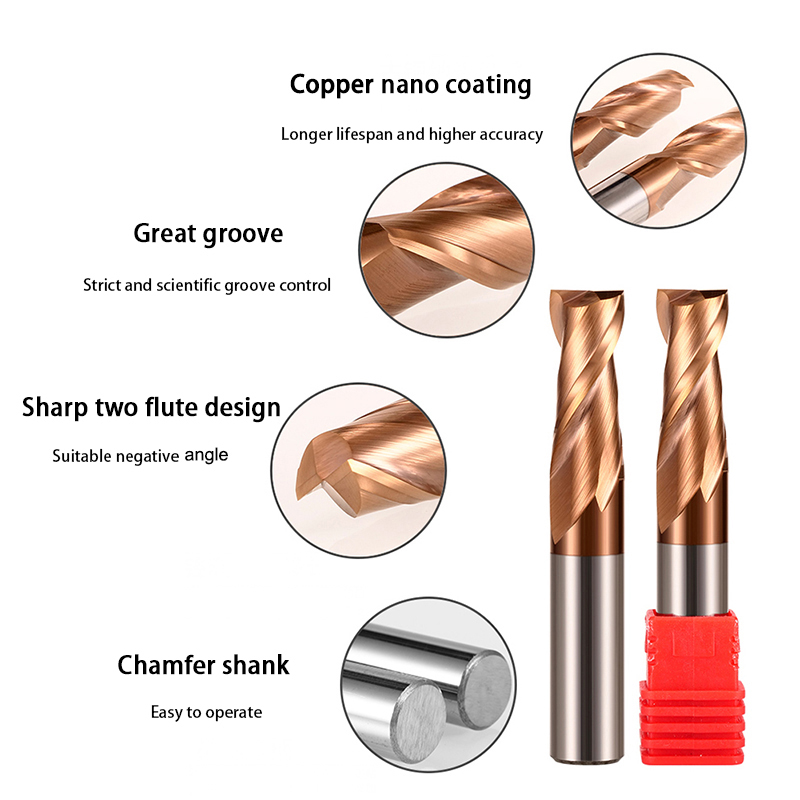

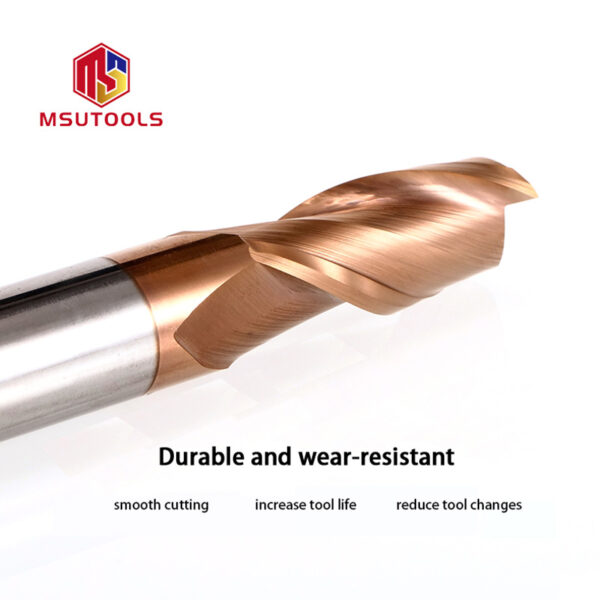

Features: Fine-grain carbide with wear-resistant coating for stable tool life. Two-flute geometry provides smooth chip evacuation, good surface finish and reduced vibration.
