2 Flute ball nose end mill
2 Flute Ball Nose End Mill
2 Flute Ball Nose End Mill
2 Flute Ball Nose End Mill
2 Flute ball nose end mill
2 Flute Ball Nose End Mill
2 Flute Ball Nose End Mill
2 Flute Ball Nose End Mill

MH-2 Flute Ball Nose End Mill

  • This 2-flute ball nose end mill is part of our High Hardness series, crafted from ultra-fine grain carbide with a high-performance multi-layer coating. It provides outstanding hardness, heat resistance and wear resistance, ensuring stable and smooth cutting performance.
  • Ideal for 3D profiling, contour milling and curved surface machining of hardened steels and mold steels. It delivers high precision, excellent chip removal and long tool life, widely used in precision CNC machining for mould and aerospace parts.
Send Inquiry

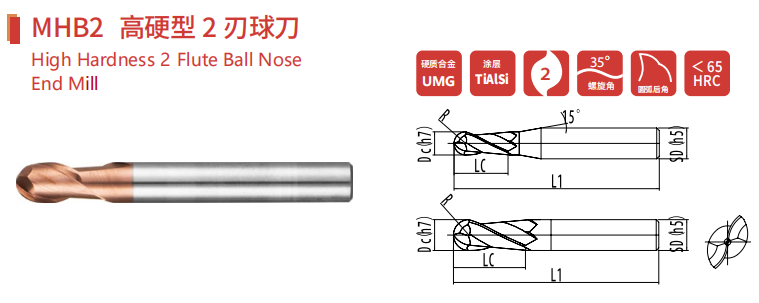

High Hardness 2 Flute Ball Nose End Mills

High Hardness 2 Flute Ball Nose End Mills
SeriesCodeParameterDc(h7)FilletLCL1SD(h5)Teeth number
MHMHB2-01R0.5*2*50*41 R0.52 50 4 2
MHMHB2-015R0.75*4*50*41.5 R0.754 50 4 2
MHMHB2-02R1*4*50*42 R14 50 4 2
MHMHB2-025R1.25*5*50*42.5 R1.255 50 4 2
MHMHB2-03R1.5*6*50*43 R1.56 50 4 2
MHMHB2-04R2*8*50*44 R28 50 4 2
MHMHB2L-04R2*8*75*44 R28 75 4 2
MHMHB2X-04R2*8*100*44 R28 100 4 2
MHMHB2-05R2.5*10*50*65 R2.510 50 6 2
MHMHB2-06SR3*9*50*66 R39 50 6 2
MHMHB2L-06SR3*9*75*66 R39 75 6 2
MHMHB2X-06SR3*9*100*66 R39 100 6 2
MHMHB2XX-06SR3*9*150*66 R39 150 6 2
MHMHB2-06R3*12*50*66 R312 50 6 2
MHMHB2L-06R3*12*75*66 R312 75 6 2
MHMHB2X-06R3*12*100*66 R312 100 6 2
MHMHB2XX-06R3*12*150*66 R312 150 6 2
MHMHB2-08SR4*12*60*88 R412 60 8 2
MHMHB2L-08SR4*12*75*88 R412 75 8 2
MHMHB2X-08SR4*12*100*88 R412 100 8 2
MHMHB2XX-08SR4*12*150*88 R412 150 8 2
MHMHB2-08R4*16*60*88 R416 60 8 2
MHMHB2L-08R4*16*75*88 R416 75 8 2
MHMHB2X-08R4*16*100*88 R416 100 8 2
MHMHB2XX-08R4*16*150*88 R416 150 8 2
MHMHB2-10SR5*15*75*1010 R515 75 10 2
MHMHB2L-10SR5*15*100*1010 R515 100 10 2
MHMHB2X-10SR5*15*150*1010 R515 150 10 2
MHMHB2-10R5*20*75*1010 R520 75 10 2
MHMHB2L-10R5*20*100*1010 R520 100 10 2
MHMHB2X-10R5*20*150*1010 R520 150 10 2
MHMHB2-12SR6*18*75*1212 R618 75 12 2
MHMHB2L-12SR6*18*100*1212 R618 100 12 2
MHMHB2X-12SR6*18*150*1212 R618 150 12 2
MHMHB2-12R6*24*75*1212 R624 75 12 2
MHMHB2L-12R6*24*100*1212 R624 100 12 2
MHMHB2X-12R6*24*150*1212 R624 150 12 2
MHMHB2-16SR8*24*100*1616 R824 100 16 2
MHMHB2L-16SR8*24*150*1616 R824 150 16 2
MHMHB2-16R8*32*100*1616 R832 100 16 2
MHMHB2L-16R8*32*150*1616 R832 150 16 2
MHMHB2-20SR10*30*100*2020 R1030 100 20 2
MHMHB2L-20SR10*30*150*2020 R1030 150 20 2
MHMHB2-20R10*40*100*2020 R1040 100 20 2
MHMHB2L-20R10*40*150*2020 R1040 150 20 2
FAQ
We use nano-grade substrates, which increase bending strength by 20%. As long as the parameters are matched, the lifespan is very stable, effectively reducing downtime.
No. The chip removal groove is mirror-polished and extremely smooth, allowing chips to be discharged smoothly.
Strictly controlled within 0.003mm with this range, ensure precise hole diameter and avoid enlarging the hole.
Yes. We have a specialized series of nano-coatings that are high-temperature resistant, wear-resistant, and specifically designed for difficult-to-process materials.
Standard sizes are readily available and can be shipped on the same day; custom-made items can be delivered in as little as 7-10 days.

MSU have rich stock for standard micro drills, if have stock, we can ship to you within 3 days. please download our 2026 Micro drills catalogue for speficiation of micro drills.

Every single item has batch traceability. If there’s a quality issue, we respond within 24 hours and offer refund or replacement.

“Our micro drill bit diameter tolerance is strictly controlled within ±0.002mm , and the shank diameter tolerance is h6 standard. Regarding runout, each batch undergoes high-magnification optical inspection before leaving the factory to ensure that the runout is controlled within 0.005mm , minimizing the risk of drill breakage and ensuring the consistency of hole diameter.”

“We offer a variety of coatings, including TiAlN (TiAlN) and DLC (Diamond-like Carbon). To address chip removal challenges, our micro-drills feature mirror-polished chip evacuation grooves . This significantly reduces cutting resistance and prevents built-up edge (BUE) formation, making them particularly suitable for deep hole machining.”

“While our unit price may be slightly higher than that of lower-end brands, by increasing tool life by 30% and reducing scrap rate by 0.5% , your ‘overall machining cost per hole’ is actually lower. For customers with high annual usage, we offer tiered pricing and annual rebate agreements.”

Yes, we can produce as per client’s drawing or request, then our engineer will make drawing for confirmation, we will produce samples for testing after client’s confim.  MSU Provide High-precision machining solutions, improved micro-hole machining yield. wholesale micro-drills, reduced tooling costs.

Yes, our MSU426 series is suitable for stainless steel.
